Equipment for shower doors

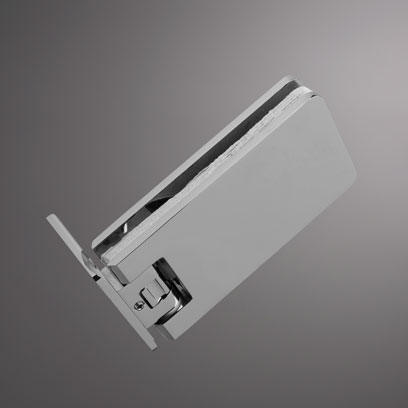

CS 2000

Océane Flex

Large sized door hinges

The opening is done either from the interior or the exterior. This model allows the door to close automatically over the last 20°. This hinge installs on all glass doors up to 45 Kg whether they are interior doors, shower walls or saunas. They can also be adjusted (+ or - 5° in the closed position) which allows for finest adjustments and wall imperfections to be compensated.

See complete file
Aquastar CA725

CA725

Aquastar Glass-Glass hinges 180°

Glas/Glas hinges Outward or inward opening 180° Self-closing function of the door in the last centimeters. Perfect sealing of the shower cabin : hinge is mounted on PVC seal.  Only holes to drill, no notch. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file
Aquastar CA726

CA726

Aquastar Wall-Glass hinges

Wall/Glas hinges Outward or inward opening Self-closing function of the door in the last centimeters. Perfect sealing of the shower cabin : hinge is mounted on PVC seal.  Only holes to drill, no notch. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file

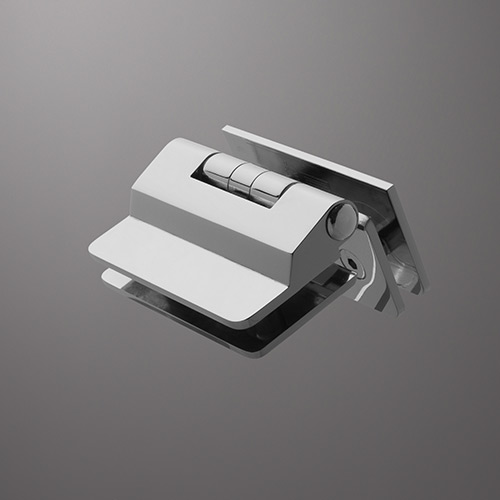

Aquastar CA727

CA727

Aquastar Glass-Glass hinges 90°

Glas/Glas hinges Outward or inward opening 90° Self-closing function of the door in the last centimeters. Perfect sealing of the shower cabin : hinge is mounted on PVC seal.  Only holes to drill, no notch. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file

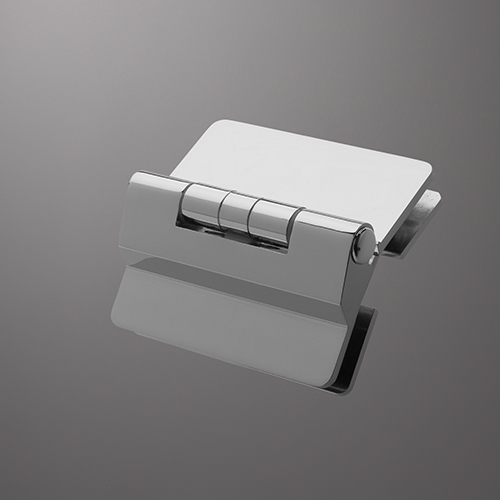

Aquastar CA728

CA728

Aquastar Glass-Glass hinges 135°

Glas/Glas hinges Outward or inward opening 135° Self-closing function of the door in the last centimeters. Perfect sealing of the shower cabin : hinge is mounted on PVC seal.  Only holes to drill, no notch. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file

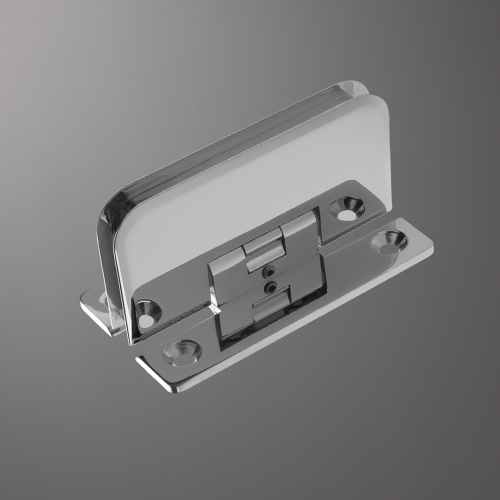

Visiostar CV0

CV0M

Visiostar wall hinge with double sided wall plate

Recipient of the Architecture and Decoration prize, this hinge melts into the wall. It overflows the glass surface by 1.5mm in the interior and the exterior which provides clarity and transparency to the shower installation. Its patented fastening system provides the installation with perfect security and solidity (hinge tested and certified to the  DIN-EN 14428 standards. With a perfectly smooth surface and no visible screws, it is easy to clean and gathers no impurities. For ease of mounting, it is possible to adjust the closed position by +/- 5°. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file

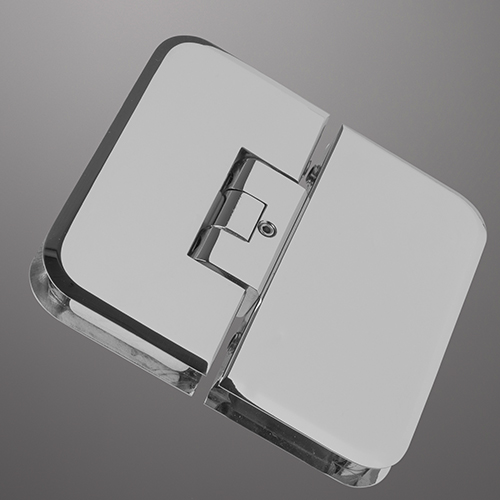

Visiostar CV1

CV1M

Visiostar wall-Glass hinge

Recipient of the Architecture and Decoration prize, this hinge melts into the wall. It overflows the glass surface by 1.5mm in the interior and the exterior which provides clarity and transparency to the shower installation. Its patented fastening system provides the installation with perfect security and solidity (hinge tested and certified to the  DIN-EN 14428 standards. With a perfectly smooth surface and no visible screws, it is easy to clean and gathers no impurities. For ease of mounting, it is possible to adjust the closed position by +/- 5°. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file

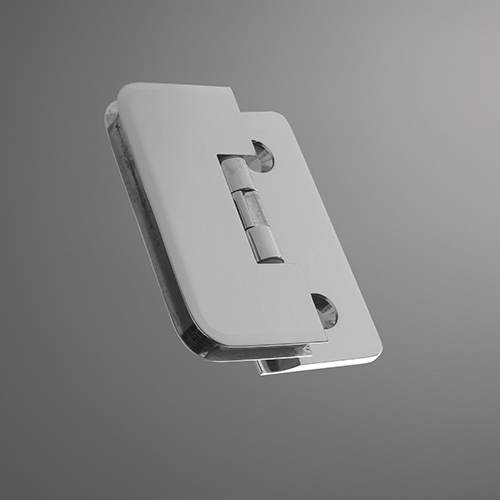

Visiostar CV2

CV2M

Visiostar wall-Glass hinge one sided wall plate

Recipient of the Architecture and Decoration prize, this hinge melts into the wall. It overflows the glass surface by 1.5mm in the interior and the exterior which provides clarity and transparency to the shower installation. Its patented fastening system provides the installation with perfect security and solidity (hinge tested and certified to the  DIN-EN 14428 standards. With a perfectly smooth surface and no visible screws, it is easy to clean and gathers no impurities. For ease of mounting, it is possible to adjust the closed position by +/- 5°. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file

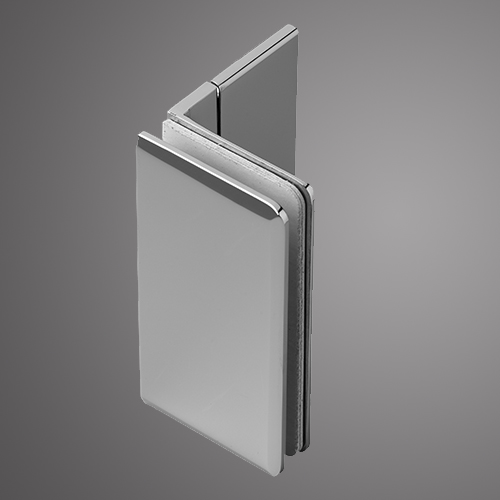

Visiostar CV7M

CV7M

Visiostar wall fitting, wallplate

Wall fitting, wallplate with long holes & cover Recipient of the Architecture and Decoration prize, this hinge melts into the wall. It overflows the glass surface by 1.5mm in the interior and the exterior which provides clarity and transparency to the shower installation. Its patented fastening system provides the installation with perfect security and solidity (hinge tested and certified to the  DIN-EN 14428 standards. With a perfectly smooth surface and no visible screws, it is easy to clean and gathers no impurities. For ease of mounting, it is possible to adjust the closed position by +/- 5°. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file

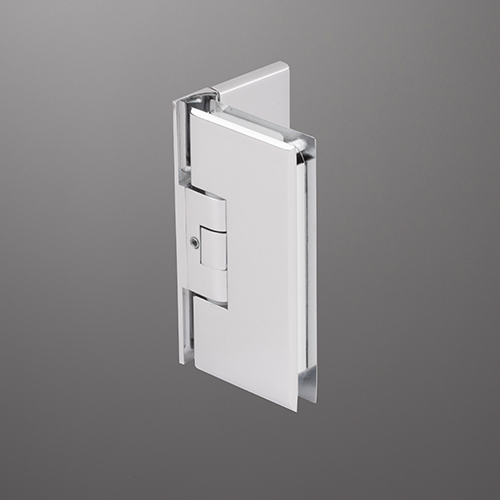

Visiostar CVC2M

CVC2M

Visiostar wall-Glass hinge one sided wall plate

Wall-Glass hinge with square corners, one sided wall plate, long holes & cover Recipient of the Architecture and Decoration prize, this hinge melts into the wall. It overflows the glass surface by 1.5mm in the interior and the exterior which provides clarity and transparency to the shower installation. Its patented fastening system provides the installation with perfect security and solidity (hinge tested and certified to the  DIN-EN 14428 standards. With a perfectly smooth surface and no visible screws, it is easy to clean and gathers no impurities. For ease of mounting, it is possible to adjust the closed position by +/- 5°. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file
Stardouch CS60

CS60

Stardouch wall-glass hinge with double sided wall plate

The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file
Stardouch CS61

CS61

Stardouch hinge glass-glass in extension

Glass-glass hinge in extension The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.

See complete file
