Stardouch
Adjustable helical hinge
This model provides automatic closing of the door over the last 20°.This hinge boasts a very wide choice of angles allowing the most original shower stalls to be built, fold-back doors, overlapping doors, shower shields on bathtubs, etc.
![Stardouch CS60](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-murale-centree_cs60-1.jpg)
CS60
Stardouch wall-glass hinge with double sided wall plate
The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS61](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-glace-glace-en-prolongement_cs61-1.jpg)
CS61
Stardouch hinge glass-glass in extension
Glass-glass hinge in extension The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS62](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-glace-glace-a-90_cs62-1.jpg)
CS62
Stardouch Glas-glas hinges 90°
Glass-glass hinges 90° The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS63](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-glace-glace-repliable-a-360_cs63-1.jpg)

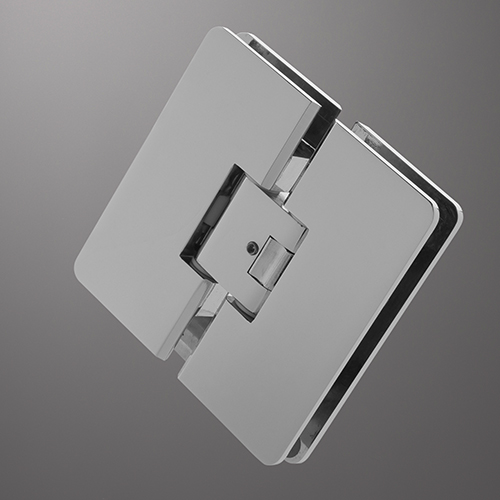

CS63
Stardouch Glass-glass folding hinge 360°
Stardouch Glass-glass folding hinge 360° The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6 or 8 mm - Glass widt : 450mm max. - Glass weight by pair of hinge : 15kg.
See complete file![Stardouch CS64](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-murale-centree-a-135_cs64-1.jpg)
CS64
Stardouch wall hinge 135° with double-sided wall plate
Stardouch wall hinge 135° with double-sided wall plate The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS65](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-murale-deportee-a-135_cs65-1.jpg)
CS65
Stardouch wall hinge 135° with one-sided wall plate
Stardouch wall hinge 135° with one-sided wall plate The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS66](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-glace-glace-a-recouvrement_cs66-1.jpg)
CS66
Stardouch glass - glass hinge overlapping
Stardouch glass - glass hinge overlapping The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS610](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-glace-glace-135_cs610-1.jpg)
CS610
Stardouch Glas-glas hinge 135°
Stardouch Glas-glas hinge 135° The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS620](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-murale-deportee_cs620-1.jpg)
CS620
Stardouch wall hinge 135° with one-sided wall plate
Stardouch wall hinge with one-sided wall plate The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS621](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-murale-deportee-avec-trous-oblong-et-cache-vis_cs621-1.jpg)
CS621
Stardouch wall-glass hinge with double sided wall plate, long holes and cover
Stardouch wall-glass hinge with double sided wall plate, long holes and cover Stardouch wall hinge 135° with one-sided wall plate The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS622](http://www.guidotti.fr/uploads/images/produit/charniere-stardouch-murale-deportee-en-prolongement-avec-trous-oblong-et-cache-v_cs622-1.jpg)
CS622
Stardouch wall hinge in extension with one-sided wall plate
Stardouch wall hinge in extension with one-sided wall plate The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by pair of hinge : 35kg.
See complete file![Stardouch CS517](http://www.guidotti.fr/uploads/images/produit/stardouch-equerre-mur-glace-avec-trous-oblongs-et-cache-vis_cs517.jpg)
CS517
Stardouch fitting fox fixed pane, wall-glass 90° with langholes &cover
Stardouch fitting fox fixed pane, wall-glass 90° with langholes & cover The Stardouch range offer a large choice of angles with many possibilities of construction. Double action hinge : in and out opening. Self closing function of the door on the last 20 degrees. Adjustment of the closed position (+/-5°) after the door has been installed Optional : cover (non visible wall screx) and long holes. Available in colors of the brass range. Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 6,8 or 10mm - Glass widt : 800mm max. - Glass weight by hinge : 35kg.
See complete file
