DGIS Electric lock for emergency exit door

DGIS
DGIS

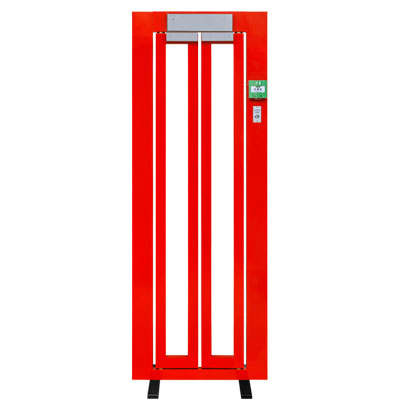

DGIS in presentation case

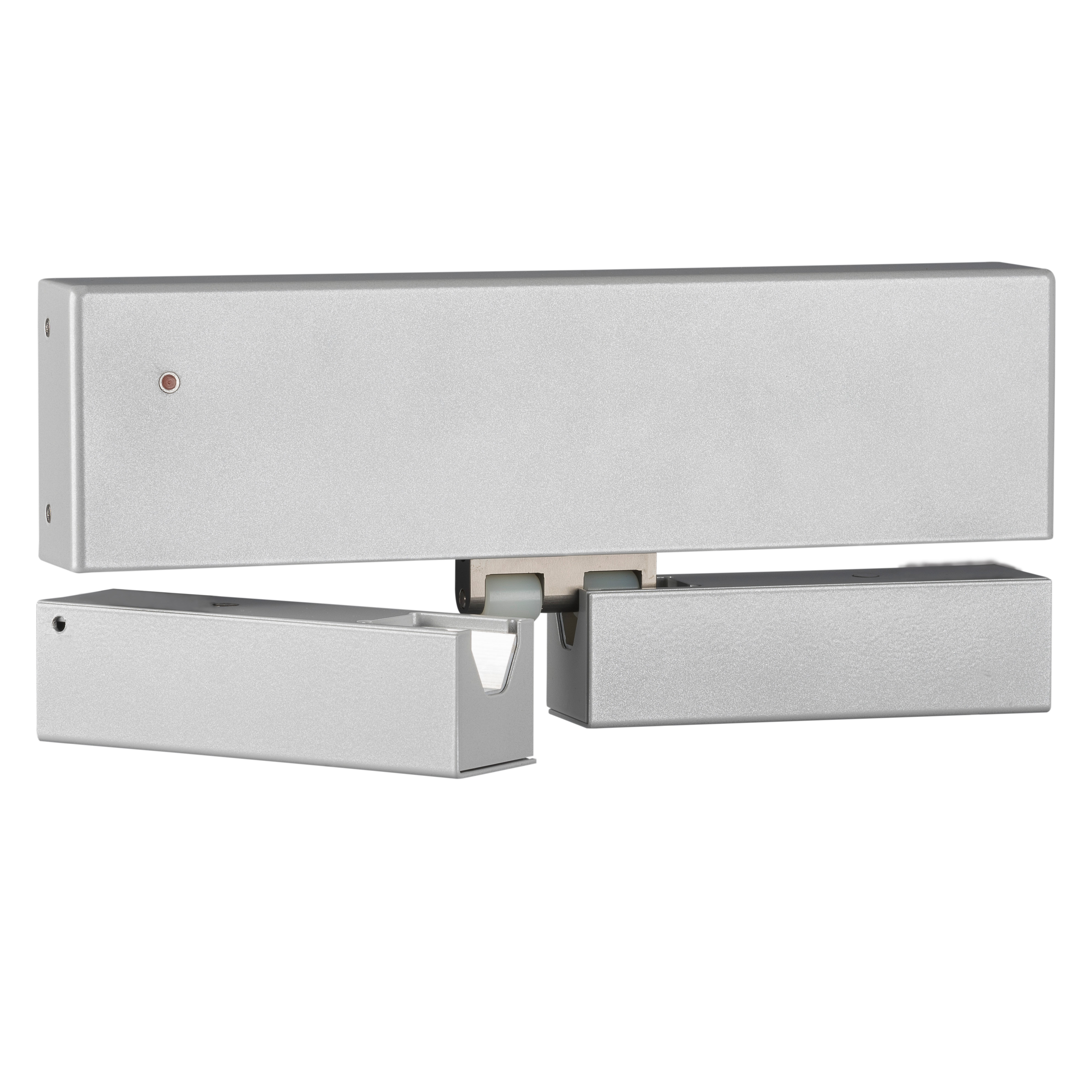

Open DGIS

The DGIS is a lock to install in both directions......Ideally designed for two-way doors, it adapts whether in double leaf or single leaf. It exists in several configurations whether panel mounted or flush mounted, impulse action or cut off.

Characteristics


Type  Motorised lock
Operation  Cut-off
Pose  Surface mounted
Door type  Metallic and swing door
Dead bolt  No
Timeable  Yes
Number of bolts  2
Bolt strenght  1 500 DaN
Reversible  No
Alimentation  24V
Rabbinical version  No

















Function


  • Enter: controlled by access control
  • Exit: controlled by access control



More information Contact-us

More information

Operation

The access control function can be provided by all types of access control (entry phone, coded keyboard, biometric, etc.) at unlocking. The re-locking is automatic at the closing of the door. Magnetic detection controls the closing and authorises the locking after a timeout. The maintaining of the locking is done by a low consumption strike.

The emergency exit function consists of unlocking by current break. The lock is simply connected to the fire detection system or the glass break box.
