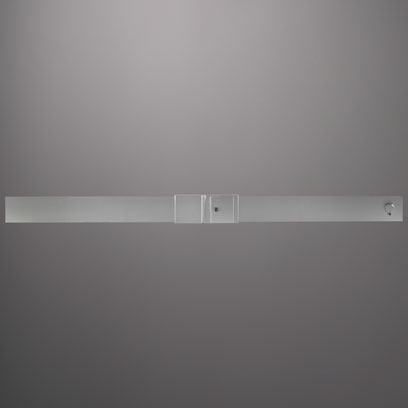

PS900 Rail lock for glass door
This rail lock is perfectly designed for installation of a glass door during renovation. It is compatible with all access control systems (card reader, entry phones, coded keyboards, etc.).
Characteristics
| Type | Electromechanic |
| Operation | Impulse |
| Notches | Yes |
| Door type | Glass door |
| Dead bolt | No |
| Timeable | No |
| Number of bolts | 1 |
| Height available | 125mm or 200mm |
| Alimentation | 12 V lock side |
| Rabbinical version | No |
Function
- Enter: controlled by key or access control
- Exit: free by push cylinder
More information
Operation
From the exterior, the opening is done electrically by an access control system in place or mechanically with a key.
From the interior, the opening is done mechanically by pressing a push-button.
The power is supplied by a flexible connection situated on the service leaf only.
Variants
| Part number | Designation |
|---|---|
| PS900 | Pulse action rail lock |
| PS901-IR | rail lock which can be used on the Sabbath day approved by the Rabinical Tribunal |
