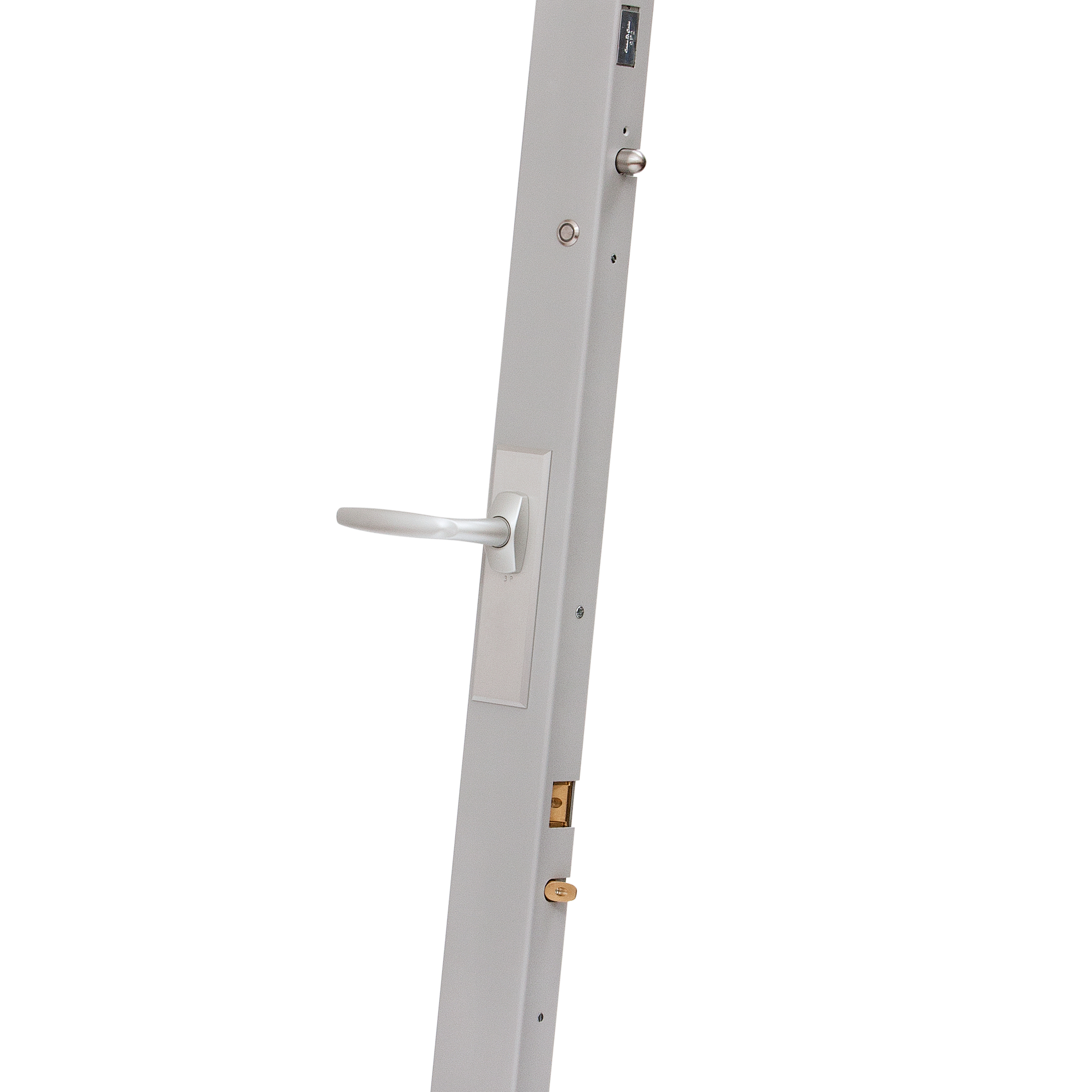

DG949P The Dante hinge for emergency exits
This is the solution to install on fire-doors to protect property against the risk of infraction but also to allow evacuation under all circumstances. It allies anti-intrusion performances with the evacuation needs of emergency exits. It is approved NF S 61-937 (emergency exits), EN1627 and EN1630 (anti-infraction), EN179 (emergency exit) et EN1125 (anti-panic exit).
This lock, compatible with all types of access control systems, prevents any non-authorised entry and allows persons within the building to evacuate at any time.
Characteristics
| Type | Motorised |
| Operation | Cut-off (handle) or impulse (access control) |
| Pose | Integrated or surface mounted |
| Door type | Metallic door 31mm or 51 mm axes |
| Dead bolt | No |
| Timeable | Yes |
| Number of bolts | 3 or 4 |
| Bolt strenght | 2 000 DaN |
| Reversible | Yes in our workshop |
| Alimentation | 12V lock side or 24V optionnal |
| Rabbinical version | No |
Function
- Enter: controlled by key or access control
- Exit: free by handle ou panic set or controlled by key
More information
Technical
Automatic and systematic locking is provided by the integrated microprocessor. This microprocessor provides timing and opening/closing information.
Even in the case of a loss of electricity, the lock remains systematic. The additional bolt prevents the door from bouncing.
This lock, compatible with all types of access control systems, prevents any non-authorised entry and allows persons within the building to evacuate at any time.
Norms & certifications
-
NF S 61-937
-
According EN1125 norm (emergency exit with panic bar)
-
According EN179 norm (emergency exit with handle)
-
Burgglar resistance: CR3, CR4 et CR5
-
Firewall : Ei60 (1h)
-
Balistic : FAB4/FAB6
Files to download
Variants
| Part number | Designation |
|---|---|
| DG949P31-IS | Serrure motorisée en applique droite 3 pts et pêne anti-rebond deverrouillage par béquille d'urgence |
| DG949P51 | Serrure motorisée en applique droite 3 pts et pêne anti-rebond deverrouillage par béquille d'urgence |
| DG949P51-IS | Serrure motorisée en applique droite 3 pts et pêne anti-rebond deverrouillage par béquille d'urgence |
| DG949PE31-IS | Serrure motorisée encastrée 3 pts et pêne anti-rebond déverrouillage par béquille d'urgence |
