Equipment for commercial and residential premises
Océane Flex
Large sized door hinges
The opening is done either from the interior or the exterior. This model allows the door to close automatically over the last 20°. This hinge installs on all glass doors up to 45 Kg whether they are interior doors, shower walls or saunas. They can also be adjusted (+ or - 5° in the closed position) which allows for finest adjustments and wall imperfections to be compensated.
See complete file
EUROPA
Self-closing hinge
This hinge can be used a helical hinge: opening in both directions (interior and exterior). Thanks to its powerful spring, the sure and precise closing of the door is automatic from 0° to 85°, without the need for a door-closer. In the 90° position, the door is maintained open. This hinge is ideal for office doors (up to 45 Kg).;
See complete file
CO2000
Oceane adjustable wall hinge with one sided plate
The adjustable hinge for large size doors. Double action hinge : In & out opening. Self-closing function of the door on the last 20 degrees. On any type og glass doors up to 45kg (interior doors, shower doors, sauna doors...) Available in colors of brass range Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 900mm max. - Glass weight by pair of hinge : 45kg.
See complete file
CO2100
Oceane Flex adjustable glas-glas hinge in extension
The adjustable hinge for large size doors. Double action hinge : In & out opening. Self-closing function of the door on the last 20 degrees. On any type og glass doors up to 45kg (interior doors, shower doors, sauna doors...) Available in colors of brass range Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 900mm max. - Glass weight by pair of hinge : 45kg.
See complete file
CO2200
Oceane Flex adjustable glass-glass hinge 90°
The adjustable hinge for large size doors. Double action hinge : In & out opening. Self-closing function of the door on the last 20 degrees. On any type og glass doors up to 45kg (interior doors, shower doors, sauna doors...) Available in colors of brass range Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 900mm max. - Glass weight by pair of hinge : 45kg.
See complete file
CO2300
Oceane Flex adjustable glass-glass hinge 135°
The adjustable hinge for large size doors. Double action hinge : In & out opening. Self-closing function of the door on the last 20 degrees. On any type og glass doors up to 45kg (interior doors, shower doors, sauna doors...) Available in colors of brass range Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 900mm max. - Glass weight by pair of hinge : 45kg.
See complete file
CO2600
Oceane Flex adjustable Wall hinge with two sided wall plate
The adjustable hinge for large size doors. Double action hinge : In & out opening. Self-closing function of the door on the last 20 degrees. On any type og glass doors up to 45kg (interior doors, shower doors, sauna doors...) Available in colors of brass range Characteristics : - Material : Brass - Chrome Thickness : 4 mikrometer - Glass Thickness : 8 ou 10mm - Glass widt : 900mm max. - Glass weight by pair of hinge : 45kg.
See complete file
CE781

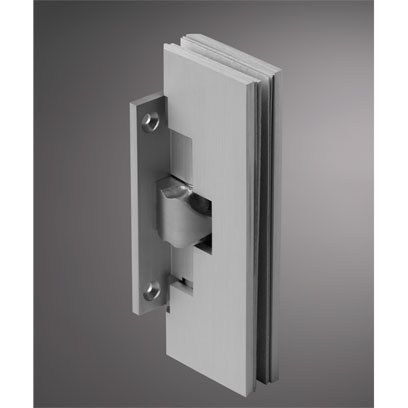

Europa hinge glass-glass in extension
Double action hinge, in and out opening. Hold-open position of the door at 90°. Automatic self-closing from 0 to 85° : a strong spring mechanism brings the door securely and precisely in its closed position, without help of a door closer. Ideal for office doors (up to 45kg). Available in the colors of the Aluminium range and un customized Ral-colors. Characteristics : - Material : Aluminium - Glass Thickness : 8 ou 10mm - Glass widt : 900mm max. - Glass weight by pair of hinge : 45kg.
See complete file
CE78
Europa hinge Wall-glass with double sided wall plate
Double action hinge, in and out opening. Hold-open position of the door at 90°. Automatic self-closing from 0 to 85° : a strong spring mechanism brings the door securely and precisely in its closed position, without help of a door closer. Ideal for office doors (up to 45kg). Available in the colors of the Aluminium range and un customized Ral-colors. Characteristics : - Material : Aluminium - Glass Thickness : 8 ou 10mm - Glass widt : 900mm max. - Glass weight by pair of hinge : 45kg.
See complete file
